Electric Guitar Kit- Carved Top Semi Hollow Junior



$275.00
List Price $399.00
You Save $124.00
Availability: In Stock

Electric Guitar Kit- Carved Top Semi Hollow Junior
SKU: BYO-CT-SH-JR

Just like our BYO-CT-SH2 but the body is a bit smaller.

A clear coat on the top will be beautiful or you can use one of Wudtone's colors to really make that flame "pop".

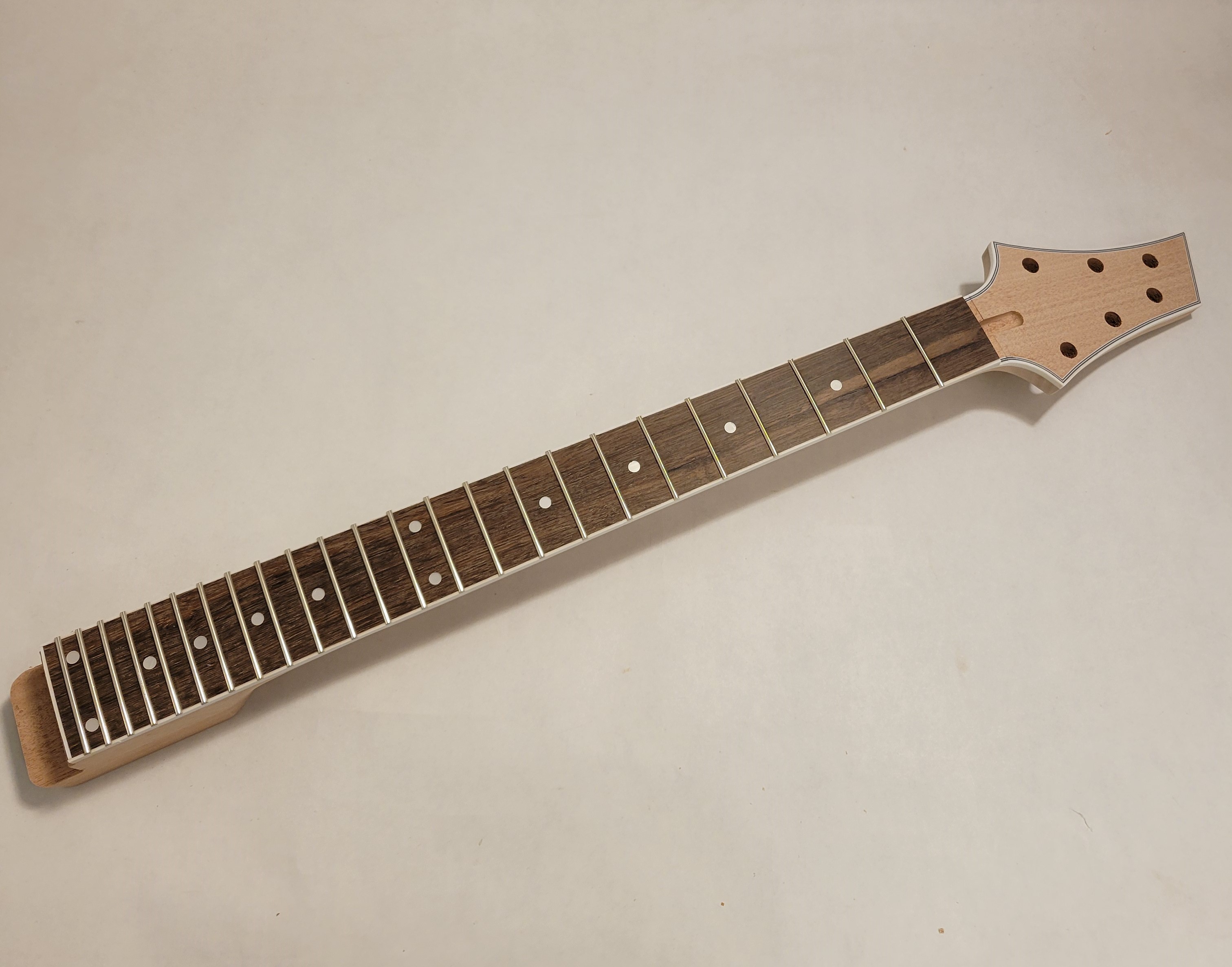

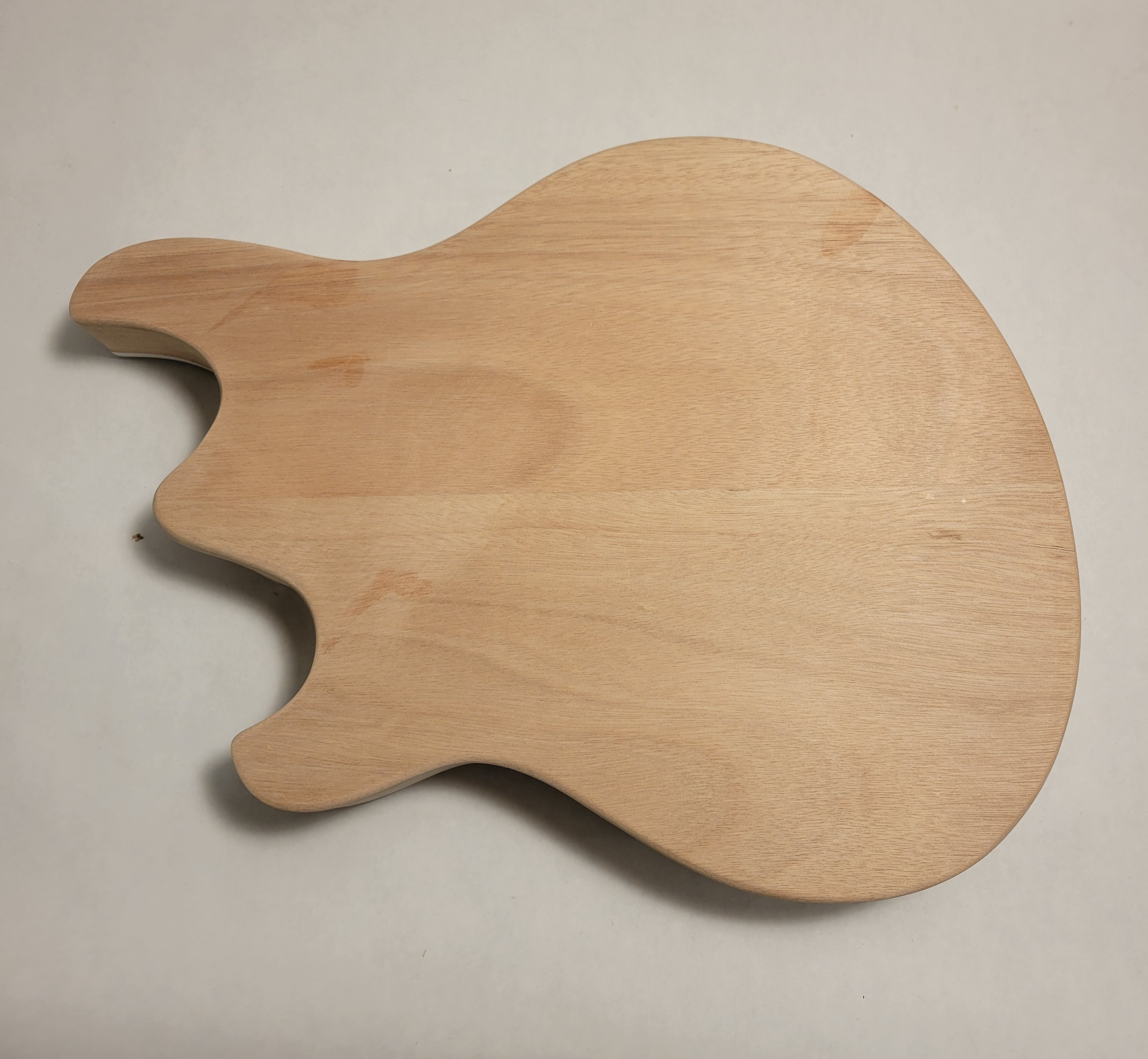

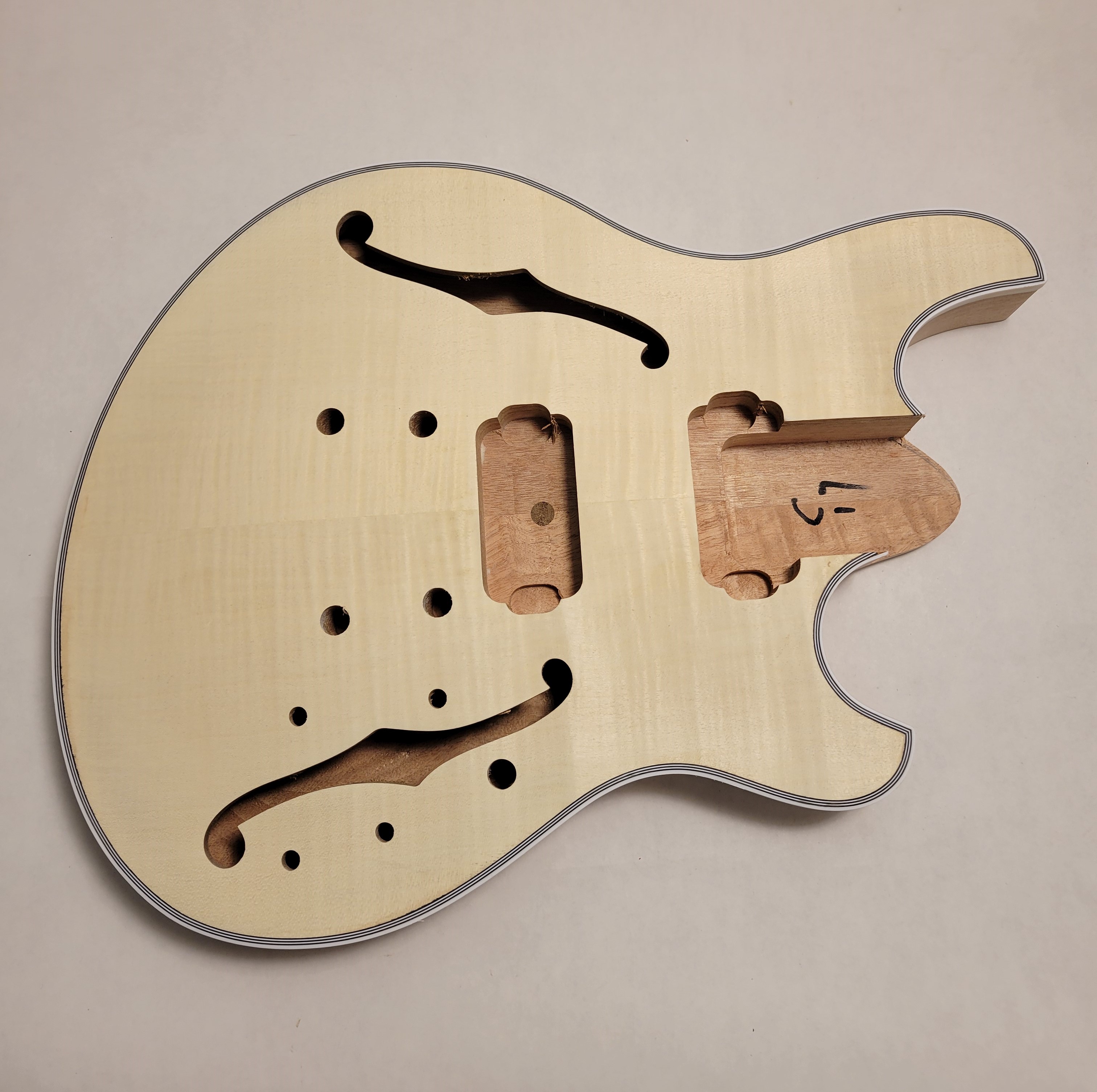

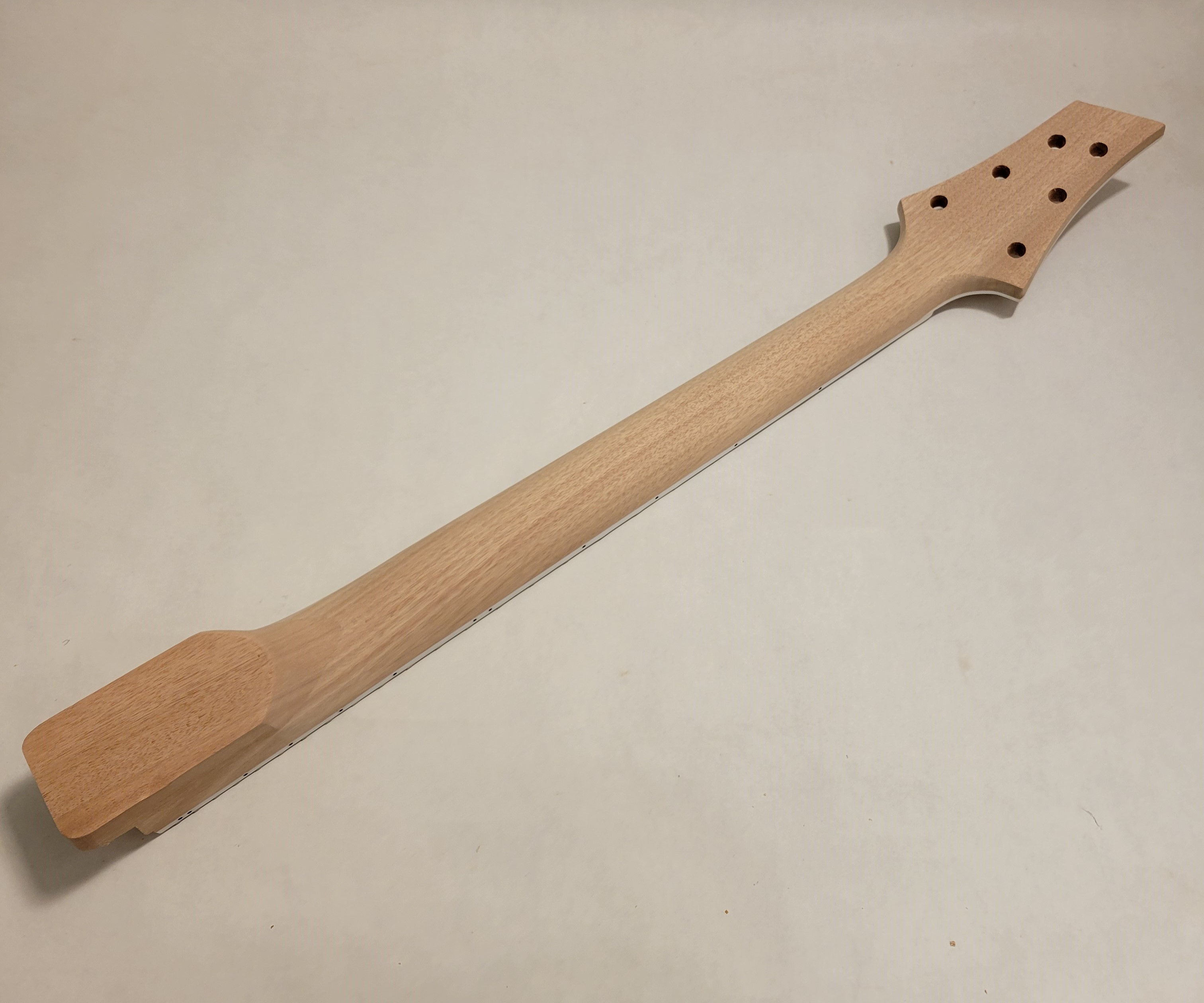

Kit includes all parts to build a complete, playable guitar (see additional images).  The body is a carved top, double cutaway design made of select Mahogany with a solid maple top and a beautiful flamed maple veneer. Solid select 24 fret Mahogany neck with a fretted rosewood fingerboard with cream binding, dot inlays and a double action truss rod.

The pickups are Chrome PAF humbucker pickups. They produce a vintage 50’s sound, smooth and warm tone.

All routing is complete and all holes have been drilled.

  • Carved Flame Top Body
  • 22 Frets
  • Chrome hardware
  • Mahogany body and neck
  • Set Neck
  • 2 Volume, 2 Tone
  • 1 5/8" at nut
  • .82 @ 1st fret
  • .896 @ 12th fret
  • Jumbo Frets (.11 x .05)
  • Chrome pickups
  • Double action adjustable truss rod
  • Complete with strings and electric cord

Click on the Tech Specs for additional details.



  • In Stock
  • Complete instructions PDF Version Available
  • Wood Type:Mahogany
  • Neck Pocket TypeSet Neck
  • Scale Length:25
  • Pickups:Two Chrome PAF style humbuckers.
  • Finish:
    • Flamed Maple veneer
  • Frets:24
  • Inlays:Dots
  • Fretboard Radius:12"
  • Fingerboard:Rosewood
  • Side Markers:Dots
  • Truss Rod:Adjusting nut at the peghead
  • Tuner Holes:Modern 13/32" (10.32mm)
