The BYO-JEM2 kit is feature packed and great for the first time builder. The white pearloid pre wired pickguard and bolt on neck construction simplifies assembly.

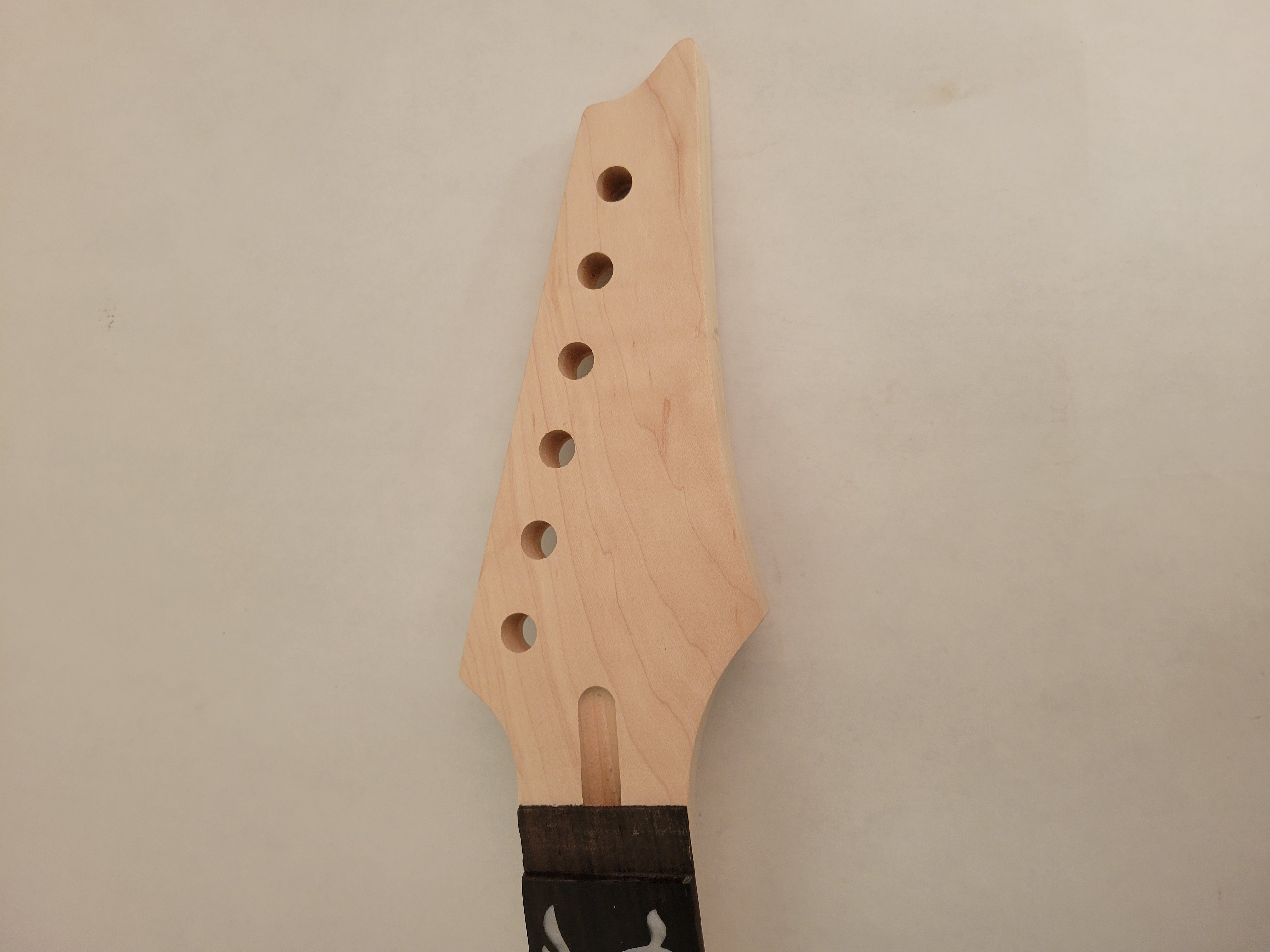

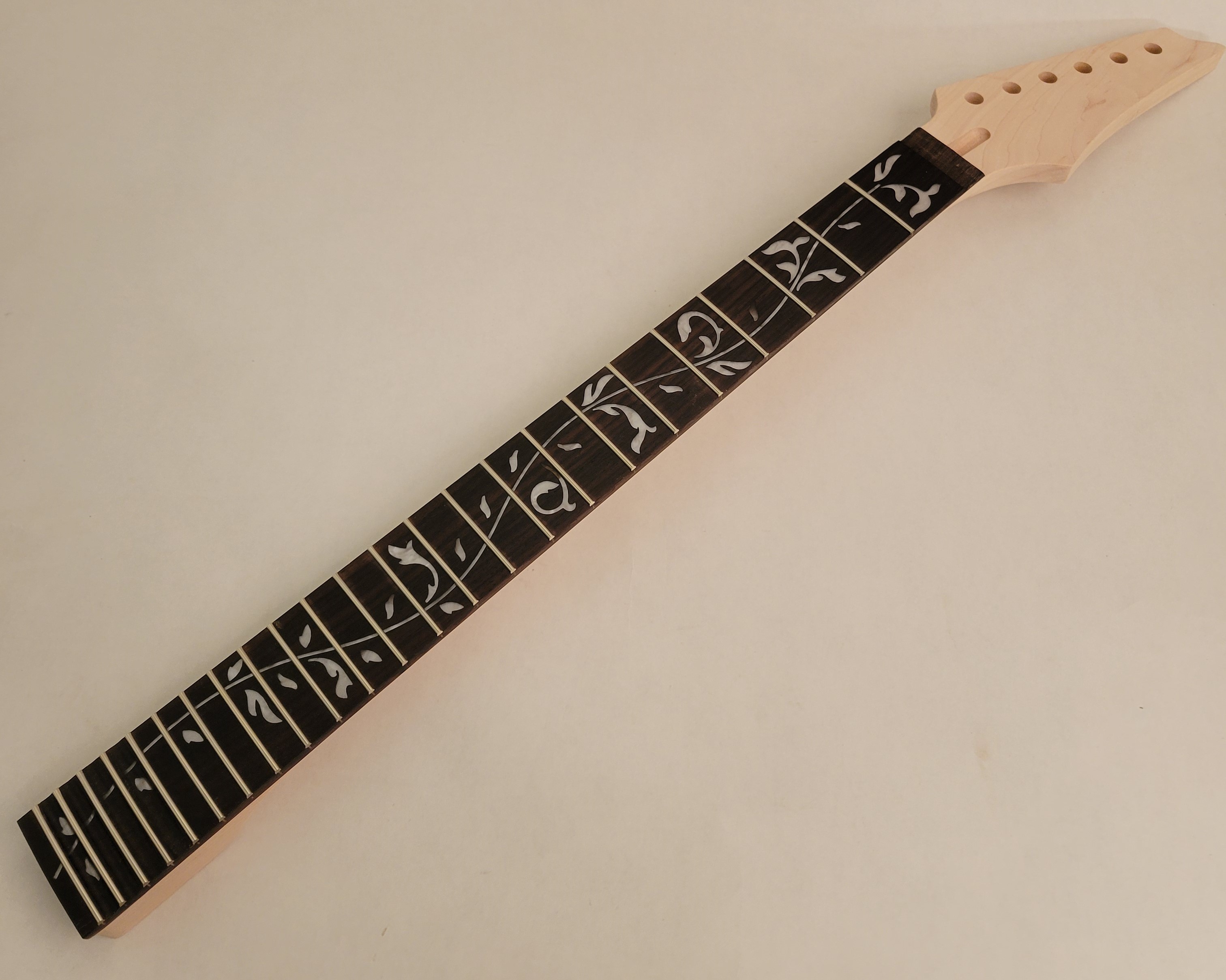

The kit features a 24 fret Maple neck and rosewood fingerboard. The fingerboard has a beautiful mother of pearl vine inlay and a locking nut.
The solid Basswood body gives you a light weight guitar without compromising tone and sustain. The body features include classic styling, a Floyd Rose style tremolo and a "Monkey Grip". Available with Chrome, Black or Gold hardware.

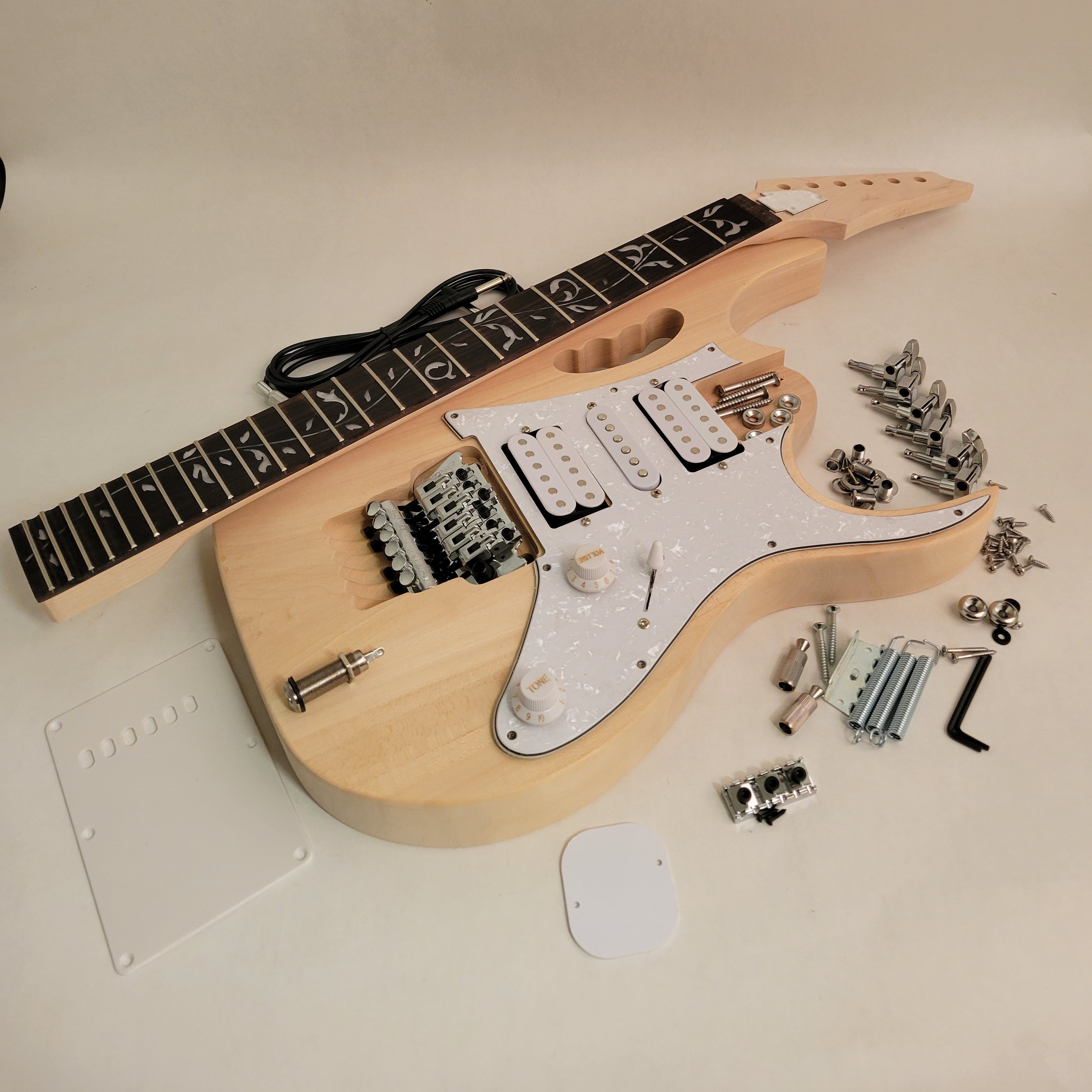

Kit includes all parts to build a complete, playable guitar (see additional images)
- Double locking Floyd Rose style tremolo
- 24 Frets
- .825" @ 1st fret
- .866" @ 12th fret
- 1.68" nut width
- Chrome hardware, standard
- Pre-wired white pearloid pickguard with white pickups
- Basswood body and Maple neck
- Bolt on Neck
- Rosewood fingerboard with MOP vine inlays
- Adjustable truss rod
- Complete with strings and electric cord
- Available in right or left handed
Click on the Tech Specs for additional details.
*** SV Pickup upgrade notes:
This set of pickups was designed by BYOGuitar to match the specs used by SV. This HSH pickup set favors the sharp, sensitive sound.
Neck Pickup:
13k DC resistance
Ceramic Magnets
4 conductor wiring
F spacing
White
Middle Pickup:
Single coil
12.5K DC resistance
A5 magnet
F spacing
White
Bridge Pickup
13.8k DC resistance
Ceramic Magnets
4 conductor wiring
F spacing
White
