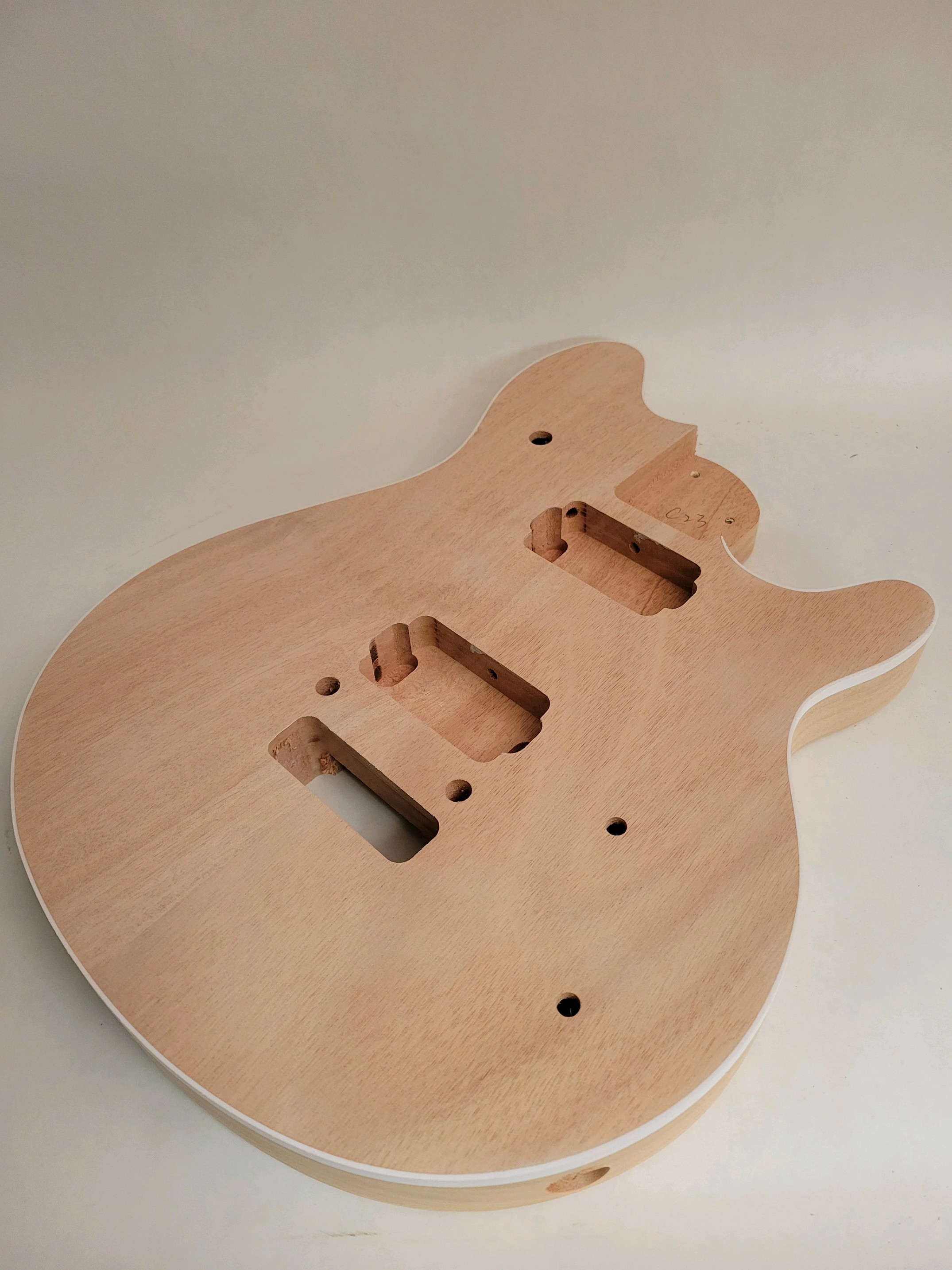

*** The kits we currently have in stock do NOT have a quilt veneer. The kits have a mahogany top. See Photos ***
Building your own electric guitar was never easier! Here is your chance to express yourself by creating a one-of-a-kind masterpiece. The BYO-Quilt Top will easily accommodate any of today's music styles, being limited only by your imagination!

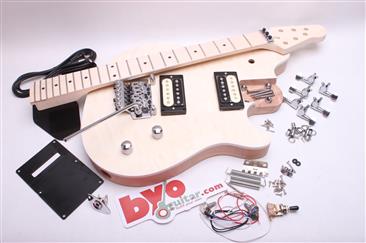

Kit includes all parts to build a complete, playable guitar (see additional images). The body is a flat top design made of mahogany with a beautiful quilted maple veneer top. The top edge of the body is finished off with white binding. Solid select 22 fret Maple neck with a fretted Maple fingerboard.
This kit features a Floyd Rose style trem and locking nut!

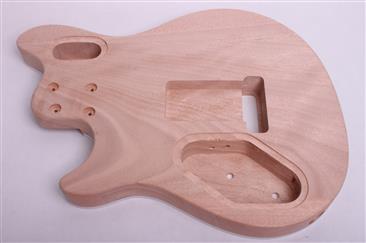

All routing is complete.
If you select a Paint Grade Body - the body in your kit may have some blemishes or knots or mismatched woods.
- Flat Top
- White binding on the top edge of the body
- 22 Frets
- Chrome hardware
- Mahogany body and Maple neck
- Bolt on Neck
- 1 5/8" at nut
- .84 @ 1st fret
- .95 @ 12th fret
- Jumbo Frets (.103 x .045)

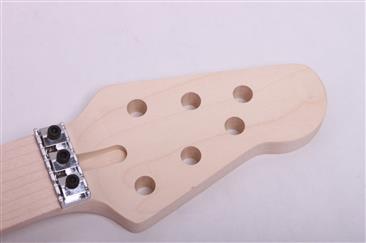

- Floyd Rose Style Trem and locking nut
- Adjustable truss rod
- Complete with strings and electric cord
Click on the Tech Specs for additional details.
